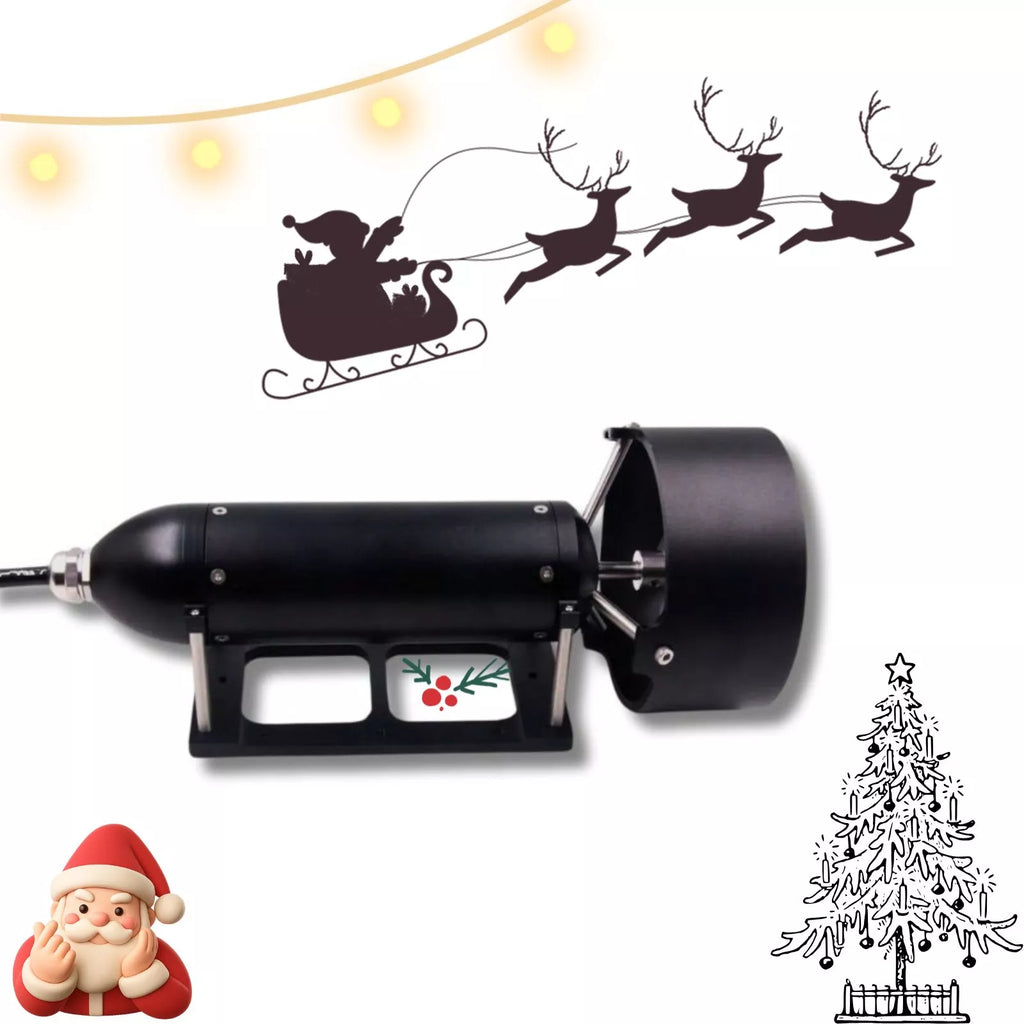

TD30/E Underwater Thruster

The TD30 thruster is a powerful, all-metal underwater motor designed for electric boats, fishing vessels, rescue equipment, and ROVs. It’s built to deliver top performance with these features:

1. Strong Build: Made from aerospace-grade metal with precision machining for durability.
2. Fully Waterproof: Engineered to be completely waterproof and resistant to dust, grit, and corrosion, ensuring long-lasting performance underwater.
3. Extended Motor Life: High-precision bearings to maximize lifespan.
4. Optimized Efficiency: Matched with a high-strength composite propeller for the best efficiency.
5. Easy Installation: Modular design for quick assembly to meet various needs.

environment: seawater/freshwater

The TD30E underwater thruster features a built-in ESC for easy setup and operation. It's perfect for electric boats and rescue equipment, offering powerful performance and durability in a compact design.

Specifications:

• Power: 1900W
• Max Thrust: 30kg forward, 20kg reverse
• Depth Rating: Up to 200m
• Size: 271mm x 123mm
• Cable Length: 100cm (customizable)

ESC parameter:

• Voltage Range: 12V-50V
• Current: 80A

• BEC:Null
• Max Current: 100A
• PWM input pulse width:1000-1500-2000us (1500 is stop)
• PWM frequency: 50-500 Hz
• Throttle calibration mode: automatic
• Temperature protection: YES
• Locked rotor protection: YES


This thruster is ideal for those who need reliable and efficient underwater propulsion in demanding environments.

Matched remote and cable refer here

Wire connection
