152mm Aluminium Mecanum Wheel Left 14095

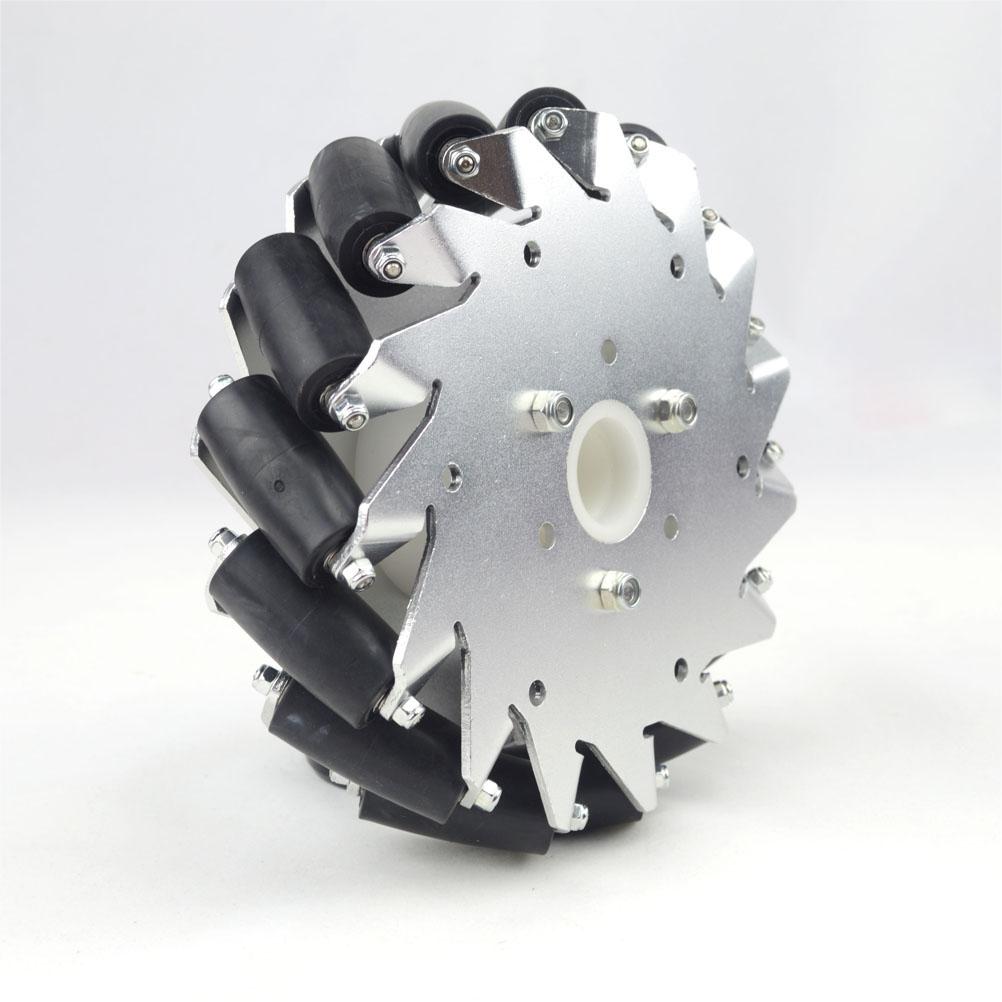

152mm Left Mecanum Wheel

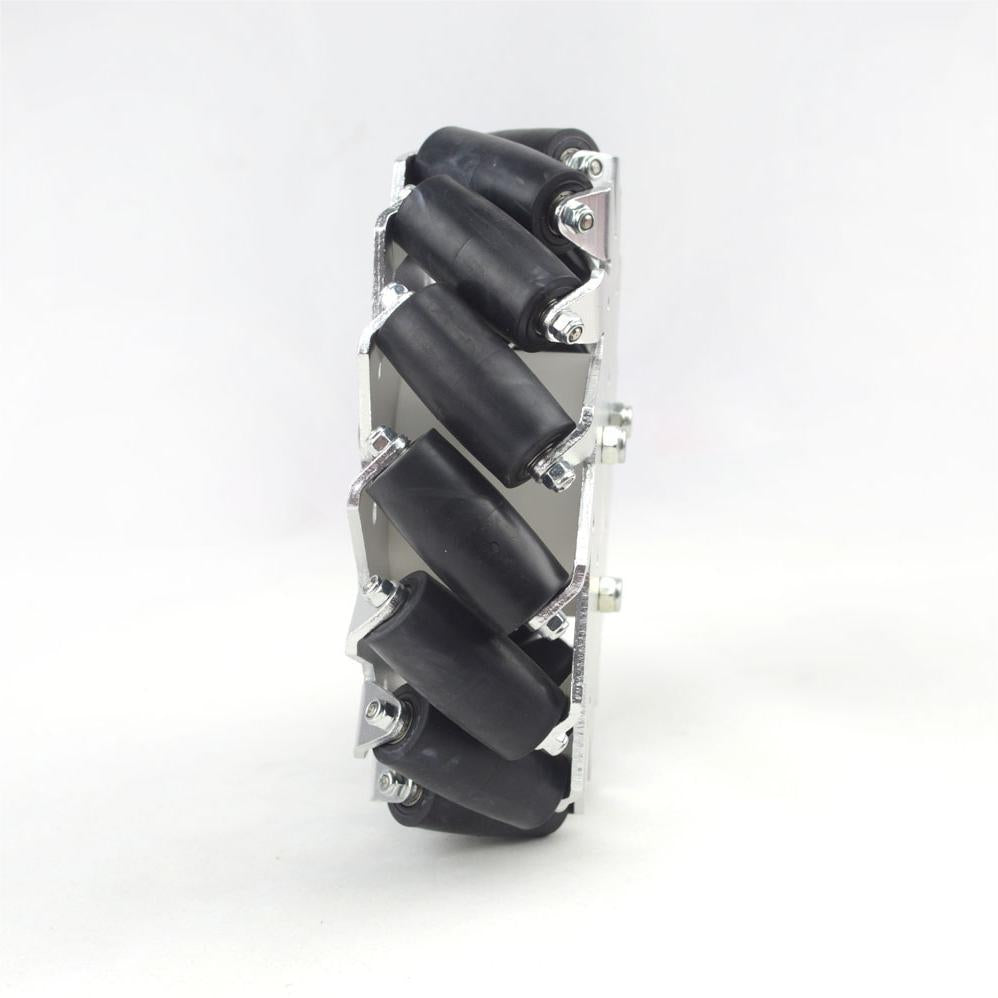

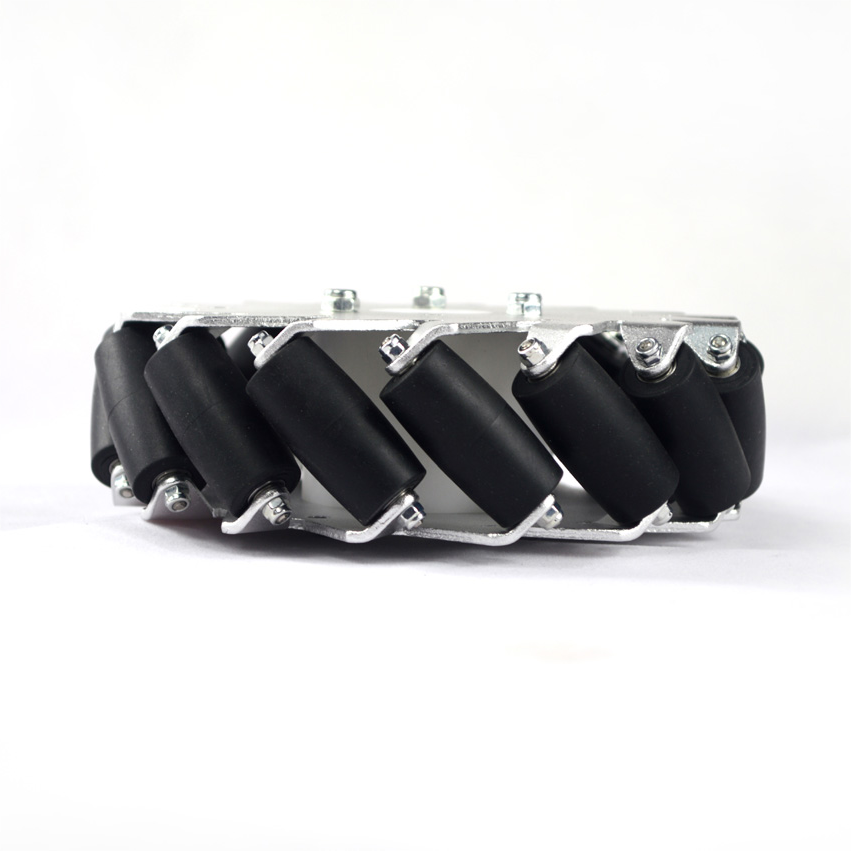

This 152mm Left Mecanum Wheel is designed to work seamlessly with three other Mecanum wheels (two right and one left). It features 15 rollers attached to its circumference, each mounted at a 45° angle to the wheel’s plane, allowing for smooth omnidirectional movement. The rollers are equipped with ball bearings for enhanced mobility.

We offer a variety of aluminum plate colors to meet your customization needs. Please note that the picture provided is for reference only; the actual item includes only the wheel.

Specifications:

• Diameter: 152 mm
• Width: 55.52 mm
• Number of Rollers: 15
• Number of Plates: 2
• Body Material: Aluminum Alloy

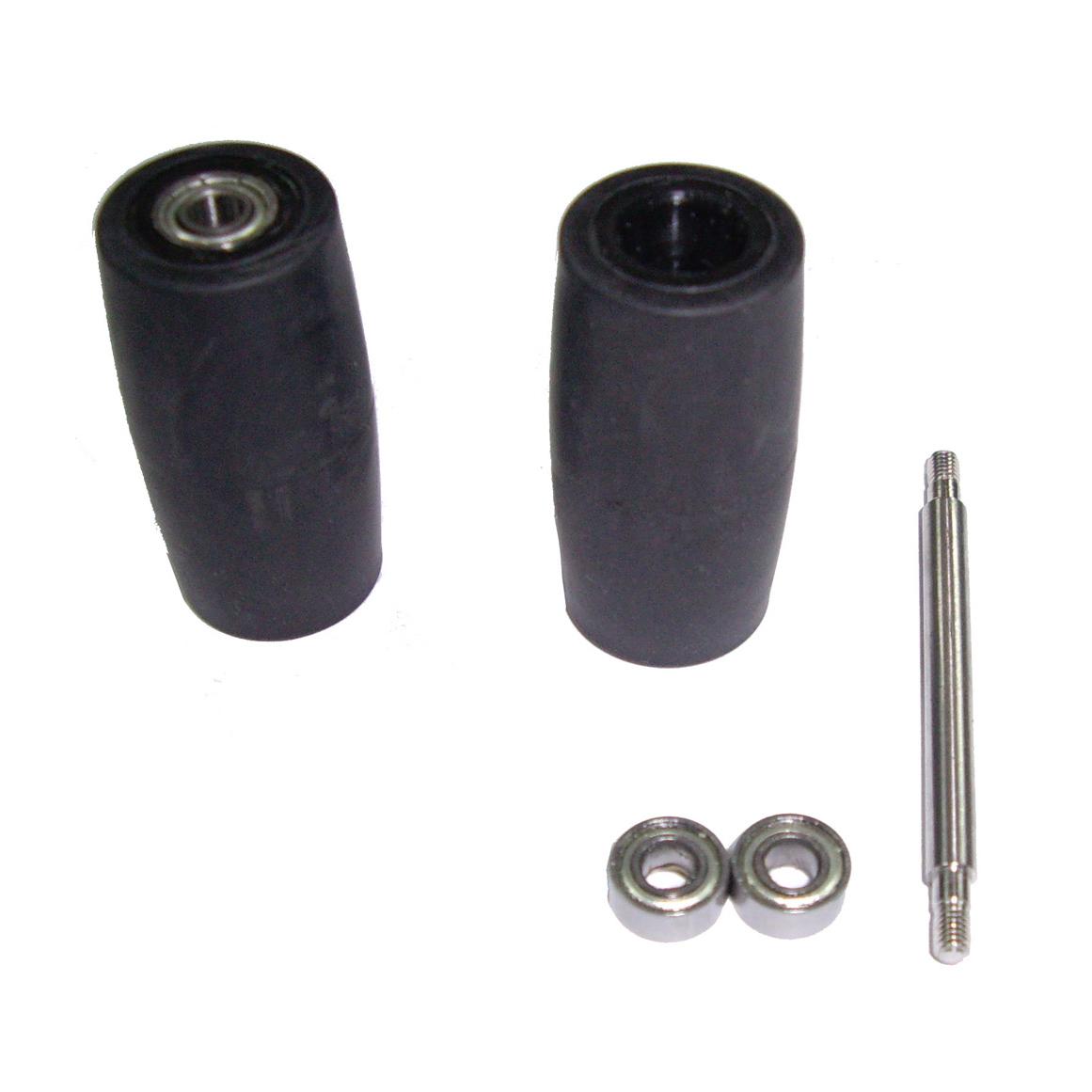

• Roller Material: Nylon + TPR
• Spacer Material: Nylon
• Length of Roller: 38.1 mm
• Net Weight: 600 g
• Load Capacity: 15 kg

Compatible Hubs:

• 6mm Hub (18007)
• 8mm Hub (18008)
• 10mm Hub (18009)
• 12mm Hub (18010)
• 16mm Hub (18012)
• 12mm Key Hub (18017)

We also offer custom manufacturing based on your design specifications, as well as special designs tailored to your needs.
